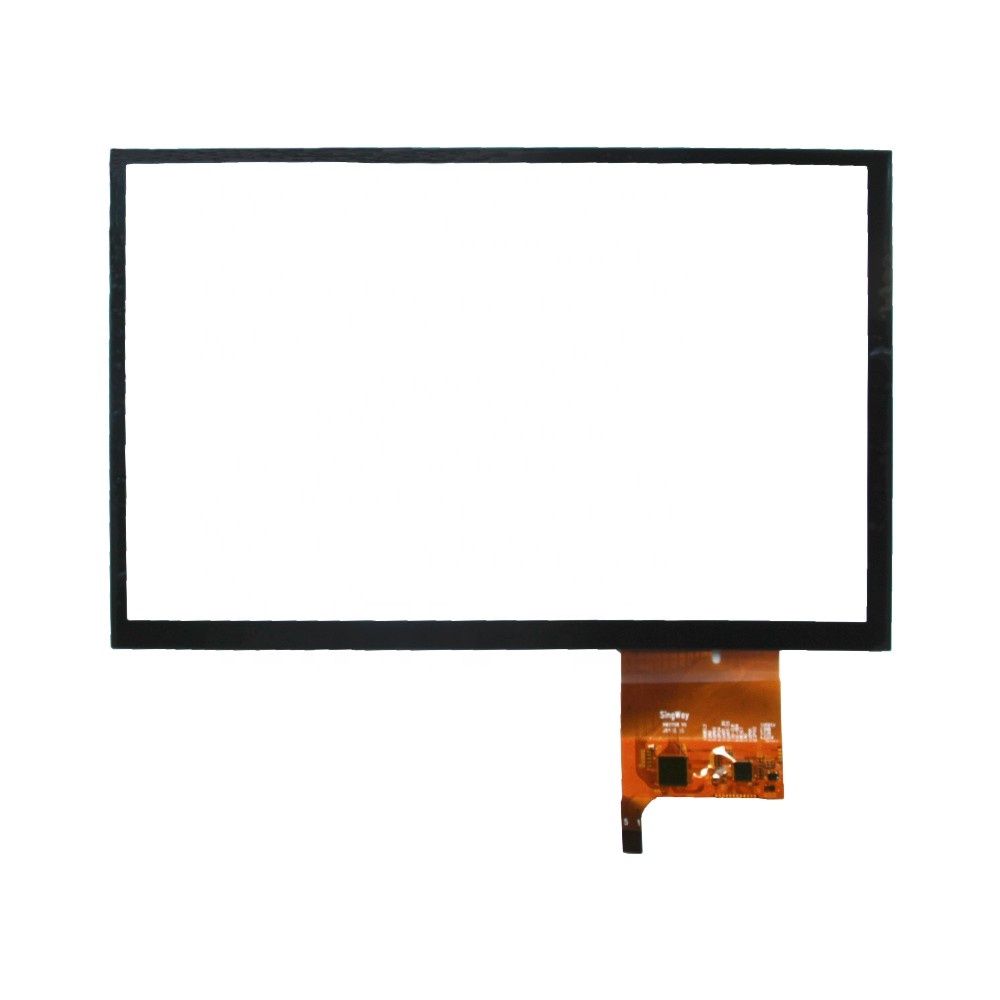

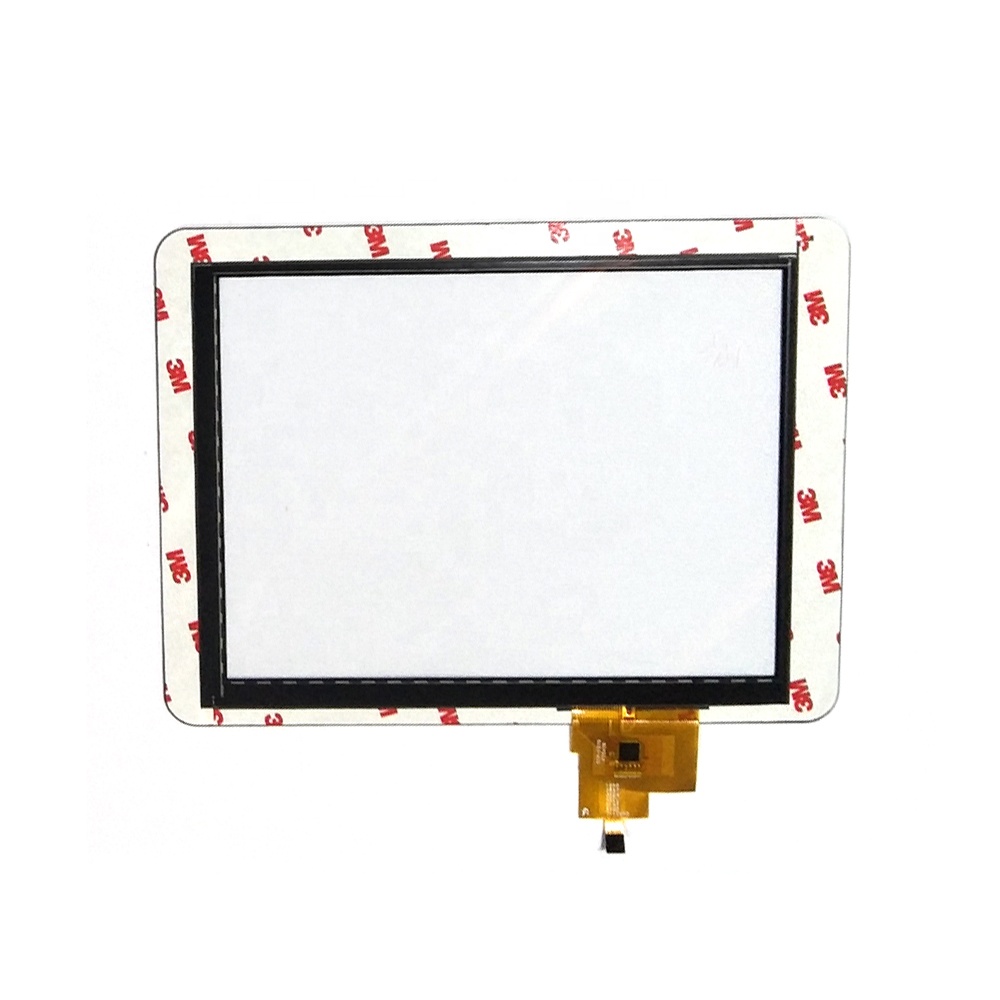

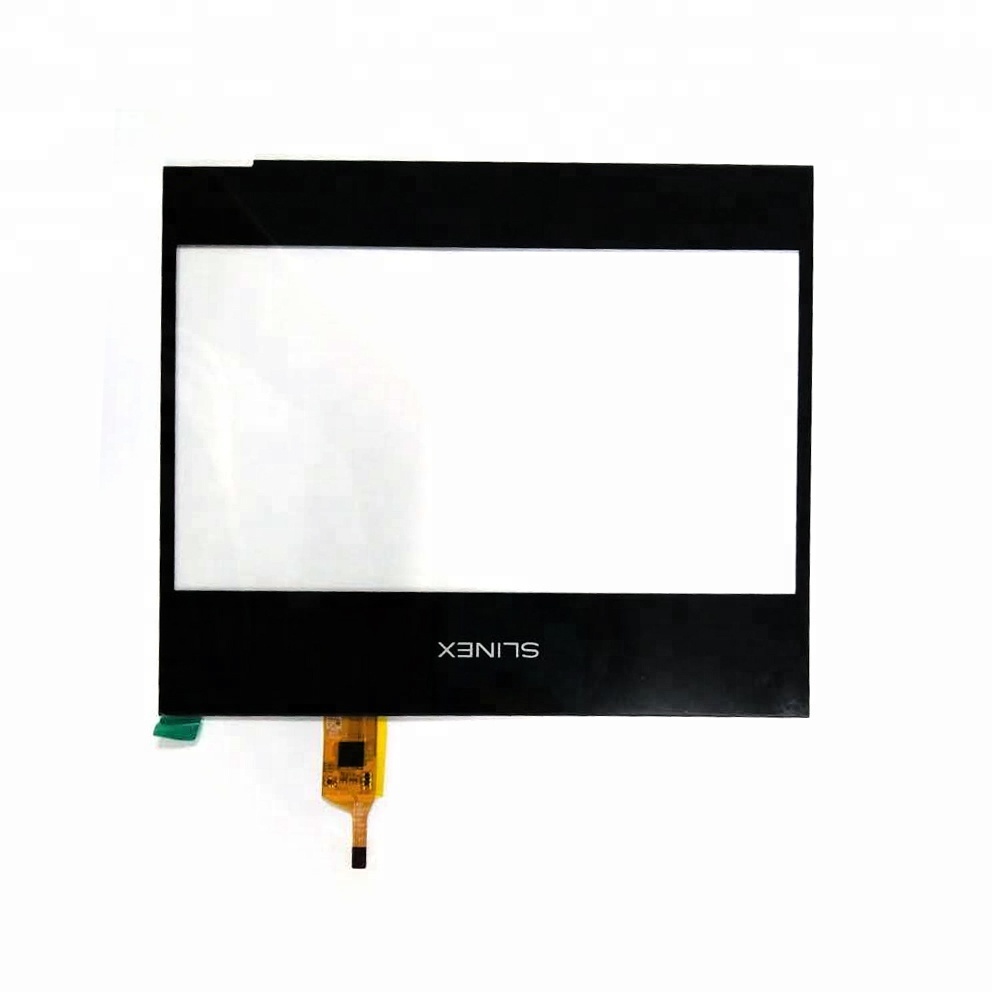

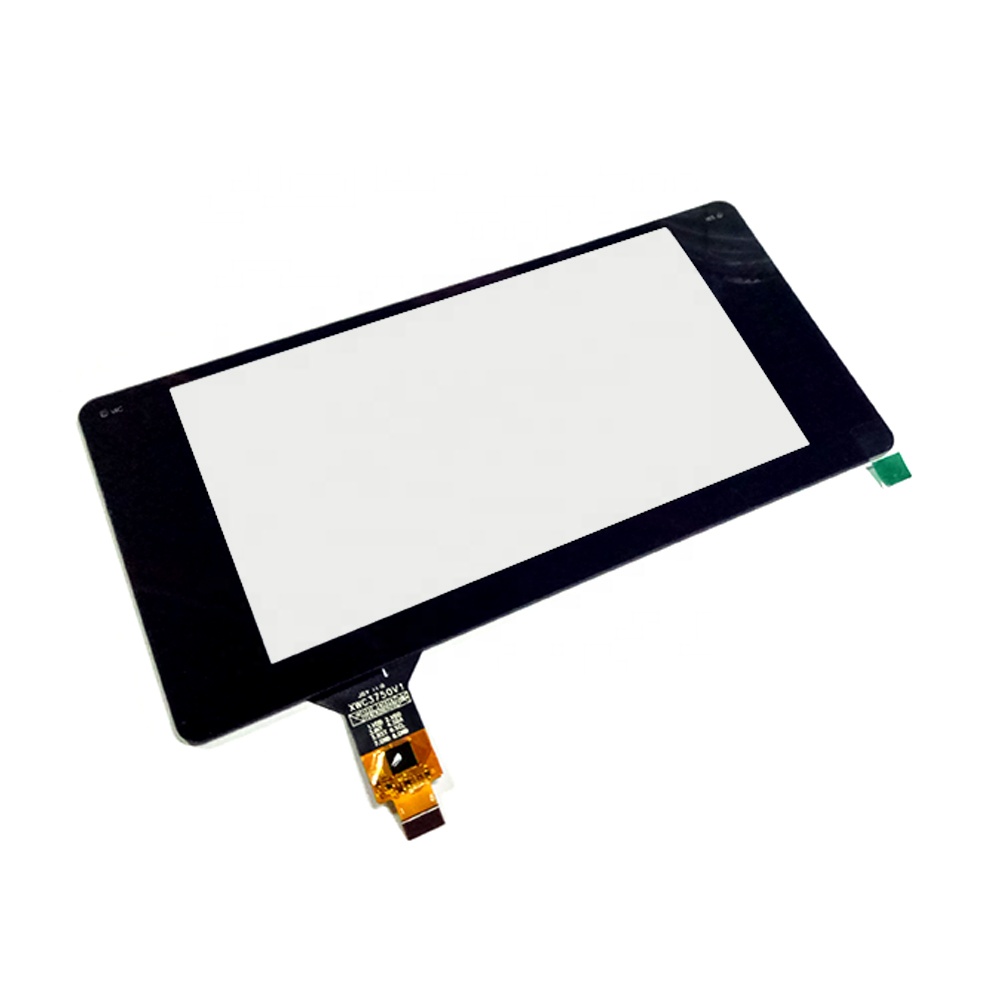

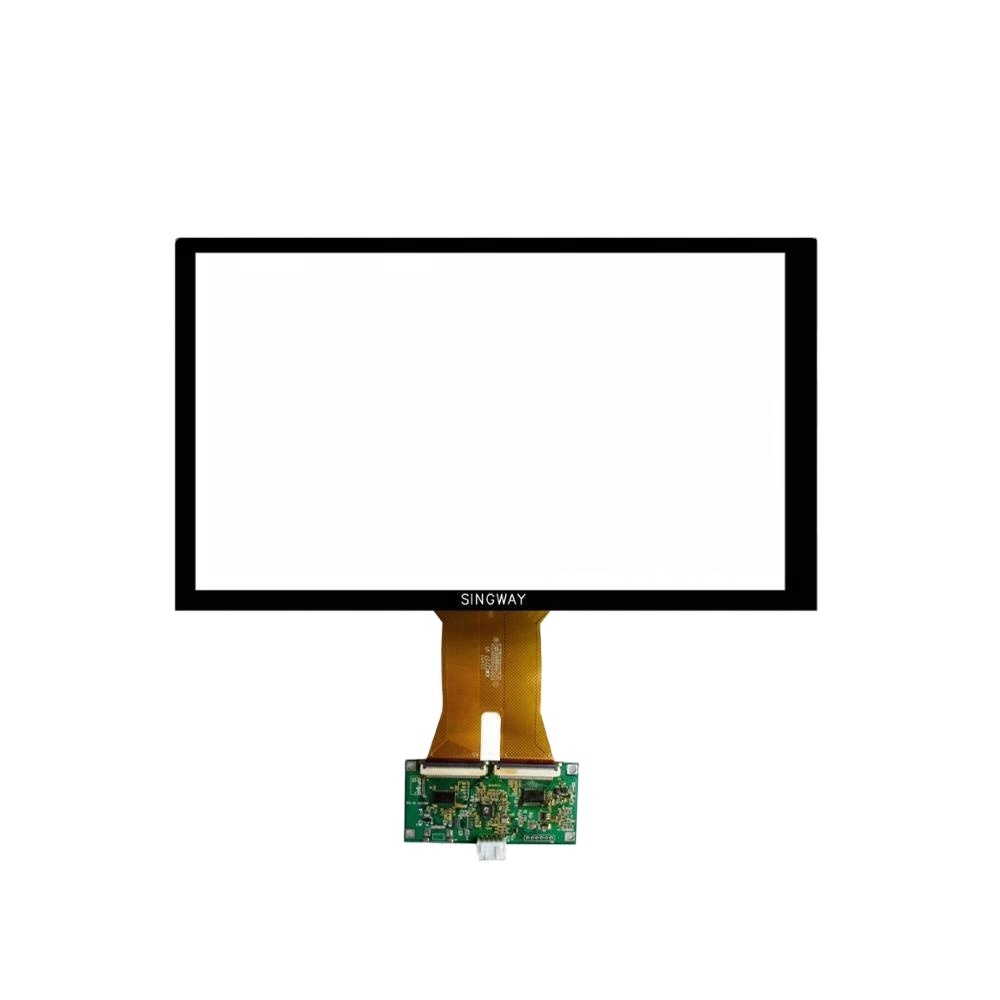

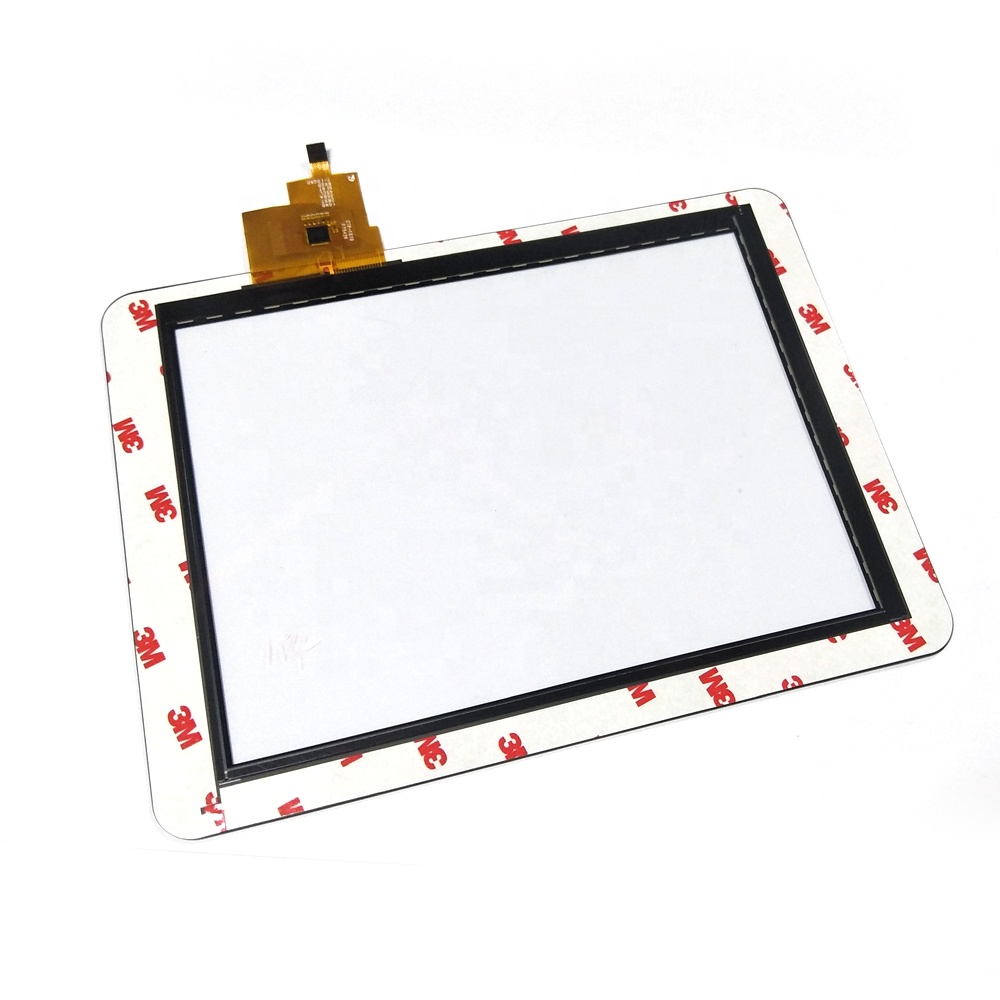

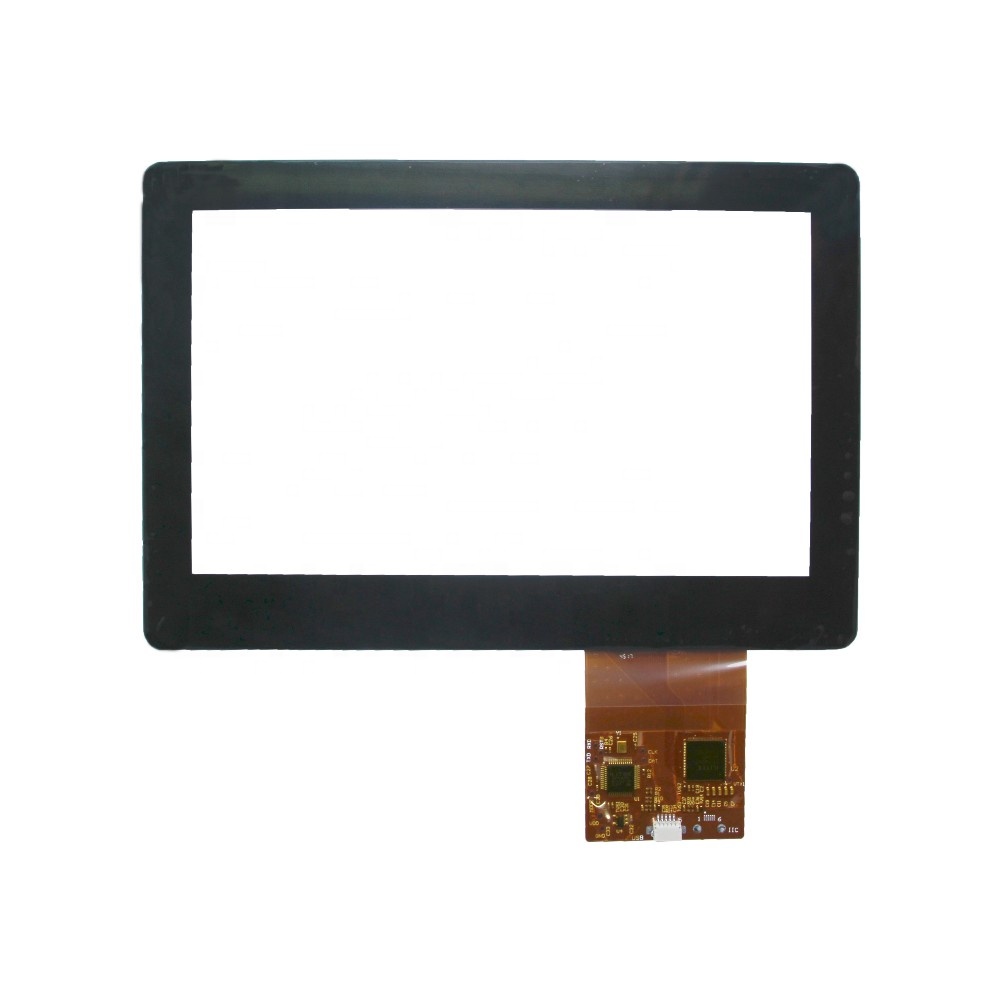

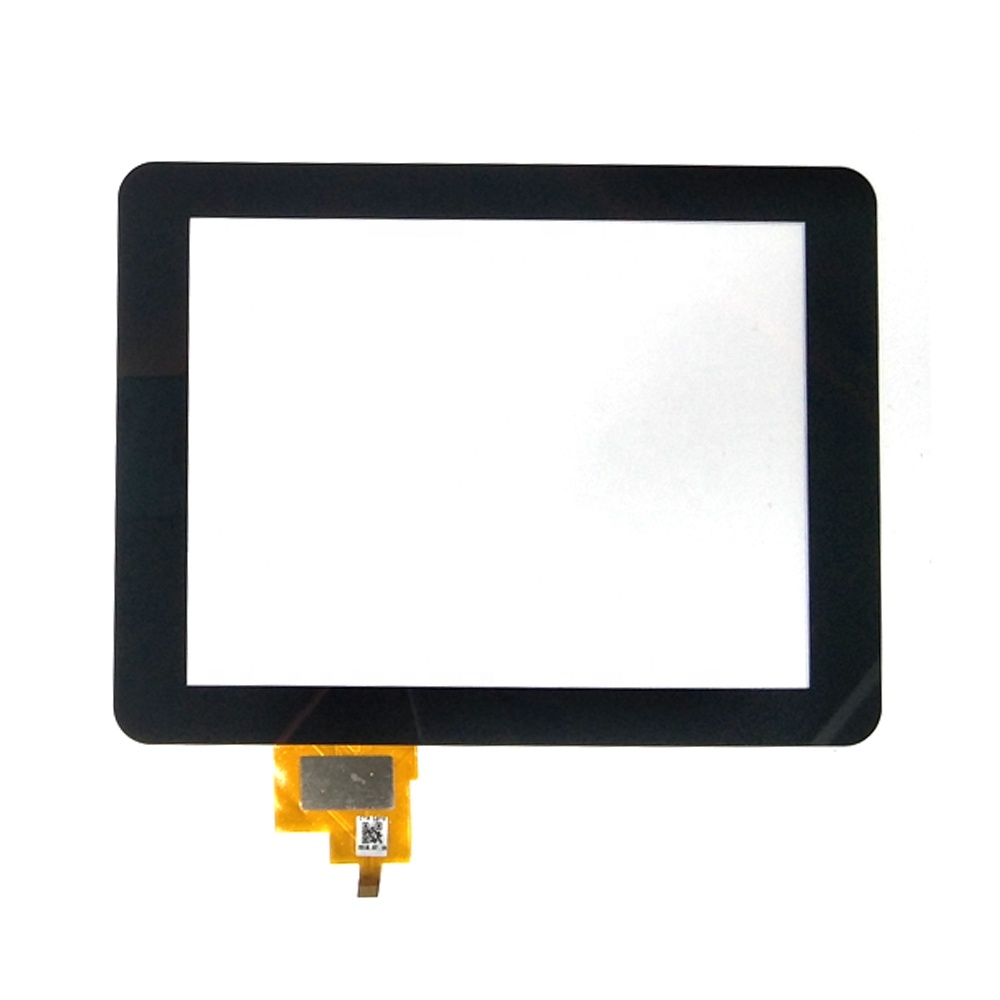

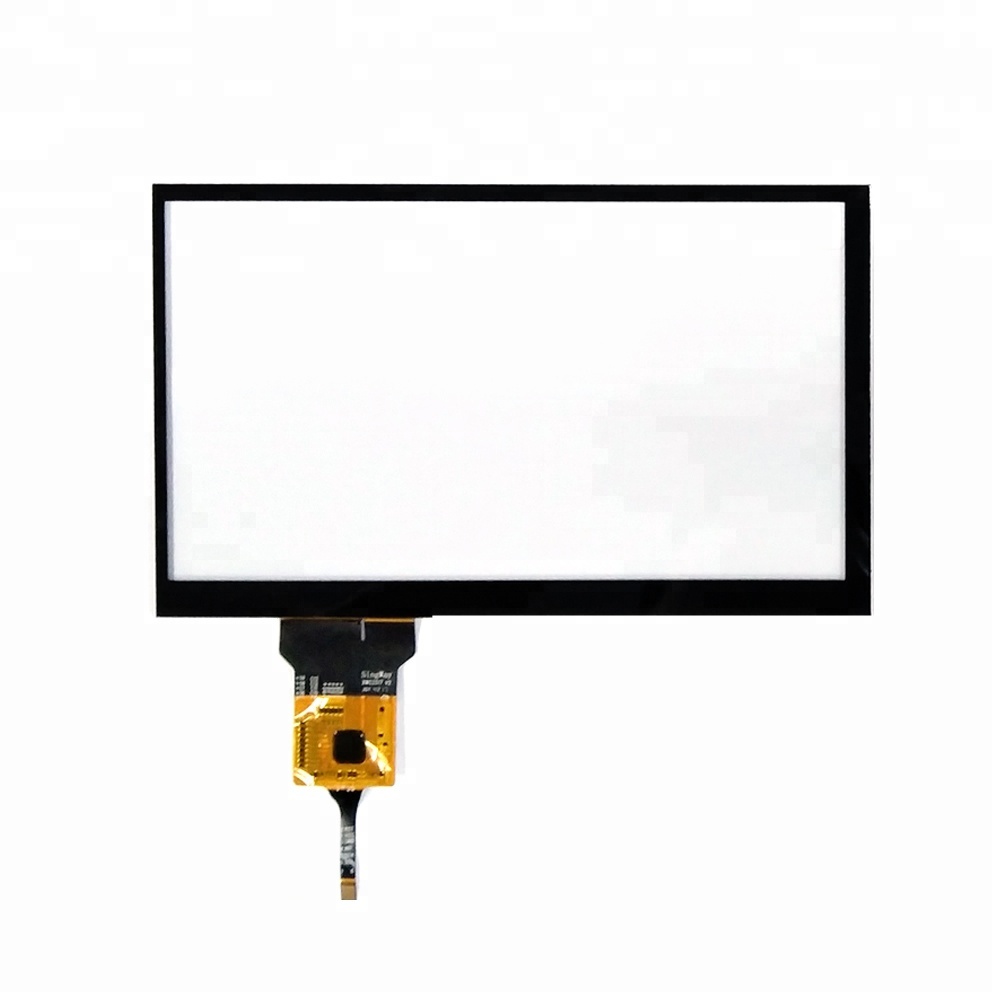

Capacitive Tounch Panel


  • Light Transmittance: 86-88%

  • Structure: PMMA/PET/GLASS+OCA+GLASS/GFF/GF

  • Input: Stylus or Finger Contact Bounce

  • Time: <3ms

  • Resolution: 4096*4096 (According to the resolution of  LCD)

  • Type of Glass: Common, Chemical, Tempering

  • Contact point: Max10

  • SurfaceHardness: 6H/7H

  • Life Expectancy: >100 Million Times

  • Operation Force: Capacitance Induction, no operating force required

  • Operation Temperature: -20℃-+70℃

  • Storage Temperature: -30℃-+80℃

  • Glass Thickness: 0.4mm 、0.55mm、0.7mm、1.1mm、1.8mm

  • Interface: IIC、USB



Product description

Product parameters

Capacitive touch screens have many unique features and advantages, which make them widely used in modern electronic devices. The following are the main characteristics and advantages of capacitive screens:

characteristic

① Touch principle: Capacitive screens recognize touch operations by detecting changes in the electric field at the touch point, without the need to apply pressure.

② Multi touch: Supports multi touch, can recognize multiple touch points, and perform complex gesture operations such as pinching, zooming, rotating, etc.

③ High sensitivity: responsive to slight touches, providing a smooth user experience.

④ High transparency: Capacitive screens usually use high transparency materials, with clear display effects and bright colors.

⑤ Surface material: Most capacitive screens use glass material, which has a smooth surface, wear resistance, and a certain degree of scratch resistance.

⑥ No physical buttons: Due to the use of touch technology, capacitive screens can be designed as interfaces without physical buttons, saving space and providing a simpler appearance.

advantage

① Superior user experience: The touch operation is intuitive and natural, and users can easily operate it through gestures, improving convenience.

② Strong durability: Due to the characteristics of the surface material, capacitive screens have a long service life and strong wear resistance.

③ Easy to clean and maintain: The smooth surface makes the capacitor screen easy to clean, suitable for public places and high-frequency usage environments.

④ Quick response: The touch response time is short, and users hardly feel any delay, providing instant feedback.

⑤ Energy saving: Capacitive screens consume relatively less power in standby mode, which helps to extend the battery life of the device.

⑥ Wide applicability: Capacitive screens can be applied to various devices, such as smartphones, tablets, computer monitors, household appliances, car central control, etc.

⑦ Support handwriting input: Can be used in conjunction with a stylus, suitable for application scenarios that require handwriting input.

In summary, capacitive screens have become an extremely important component of modern electronic devices due to their high sensitivity, multi touch, high transparency, and durability. It not only provides a good user experience but also meets various application needs, making it one of the mainstream choices for touch technology today.
