Electronic

● Circuit Rating: 35V(DC)，100mA，1W

● Resistance: 10Ω-500Ω

● Insulation Resistance: 100MΩ100V

● Dielectric Strength: 250VRms (50-60Hz 1min)

● Contact Bounce:  ≤5ms

● Life Expectancy:  Flat: ≥5 Million Times       Tactile: ≥1 Million Times

Mechanical

● Operation Pressure: Flat 57-284g (2-10oz), Tactile 170-397g (6-14oz)

● Switch Stroke: Flat 0.1-0.5mm, Tactile 0.6-1.5mm

Environment

● Operation Temperature:-40℃-+80℃

● Storage Temperature:-40℃-＋80℃

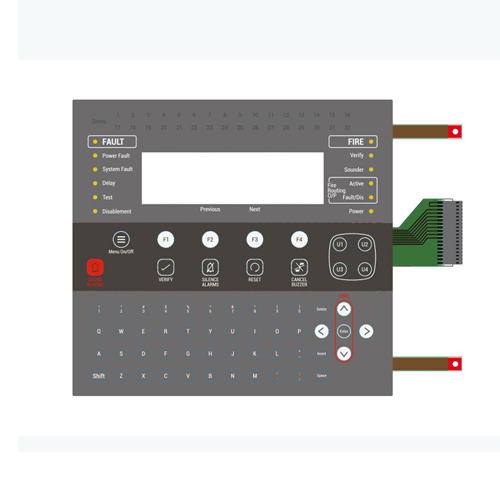

Engineered for precision and durability, this high-performance membrane switch keypad is ideal for industrial control applications. Its rugged design withstands harsh environments, including extreme temperatures, moisture, and heavy usage. The keypad features highly responsive tactile feedback, ensuring seamless operation and enhanced efficiency. With customizable layouts and graphical overlays, it integrates perfectly into complex systems. Additional options such as waterproof sealing and chemical resistance provide extra reliability. Perfect for machinery control, automation systems, and other industrial devices, this keypad guarantees long-lasting, dependable performance.
