Electronic

● Circuit Rating: 35V(DC)，100mA，1W

● Resistance: 10Ω-500Ω

● Insulation Resistance: 100MΩ100V

● Dielectric Strength: 250VRms (50-60Hz 1min)

● Contact Bounce:  ≤5ms

● Life Expectancy:  Flat: ≥5 Million Times       Tactile: ≥1 Million Times

Mechanical

● Operation Pressure: Flat 57-284g (2-10oz), Tactile 170-397g (6-14oz)

● Switch Stroke: Flat 0.1-0.5mm, Tactile 0.6-1.5mm

Environment

● Operation Temperature:-40℃-+80℃

● Storage Temperature:-40℃-＋80℃

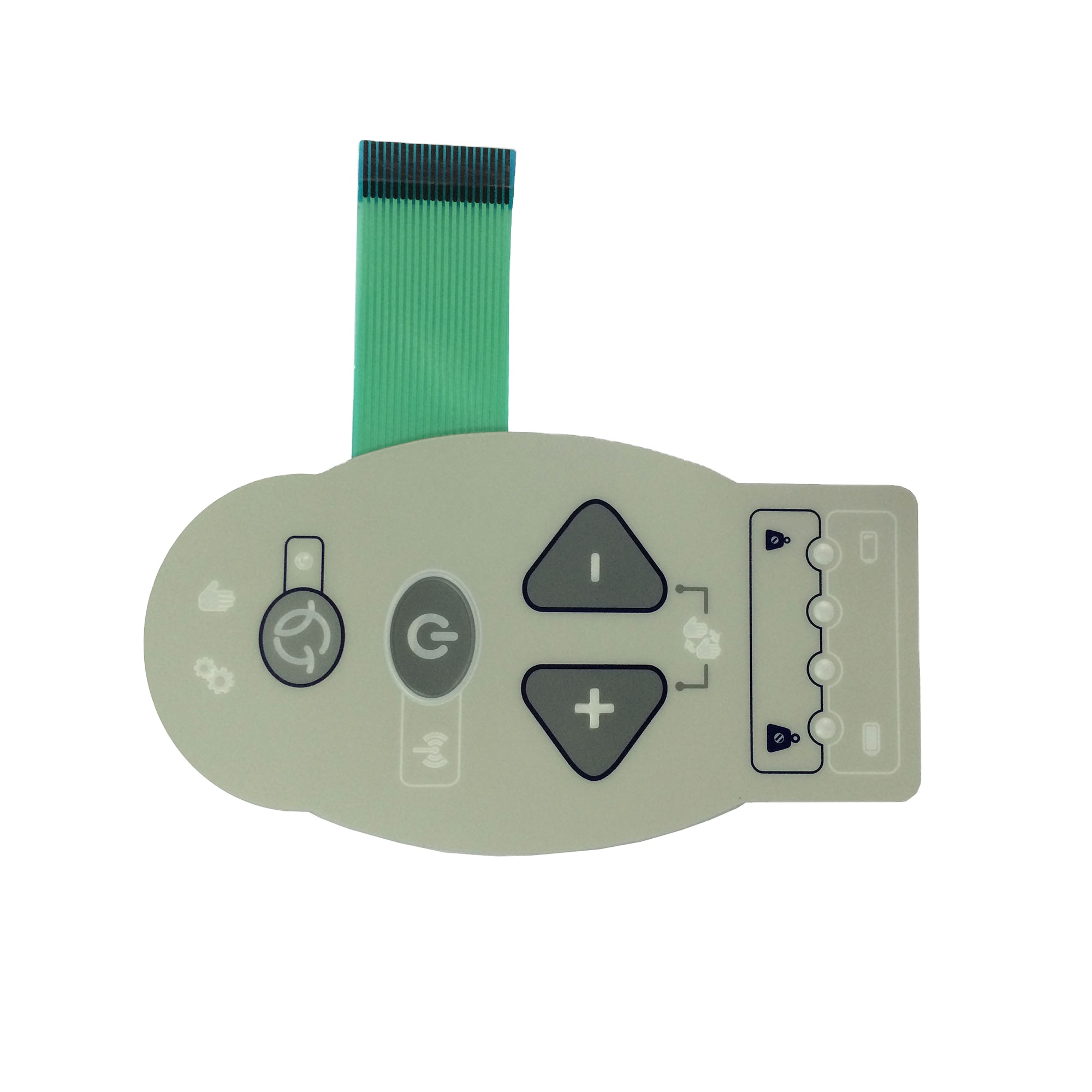

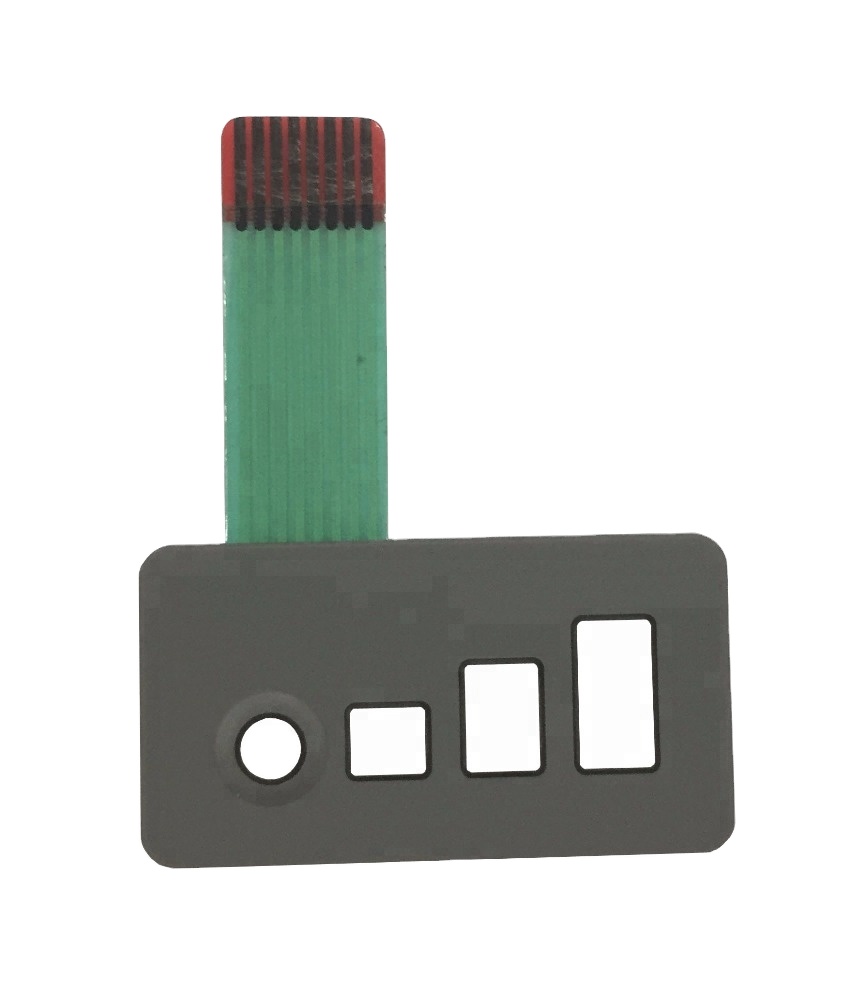

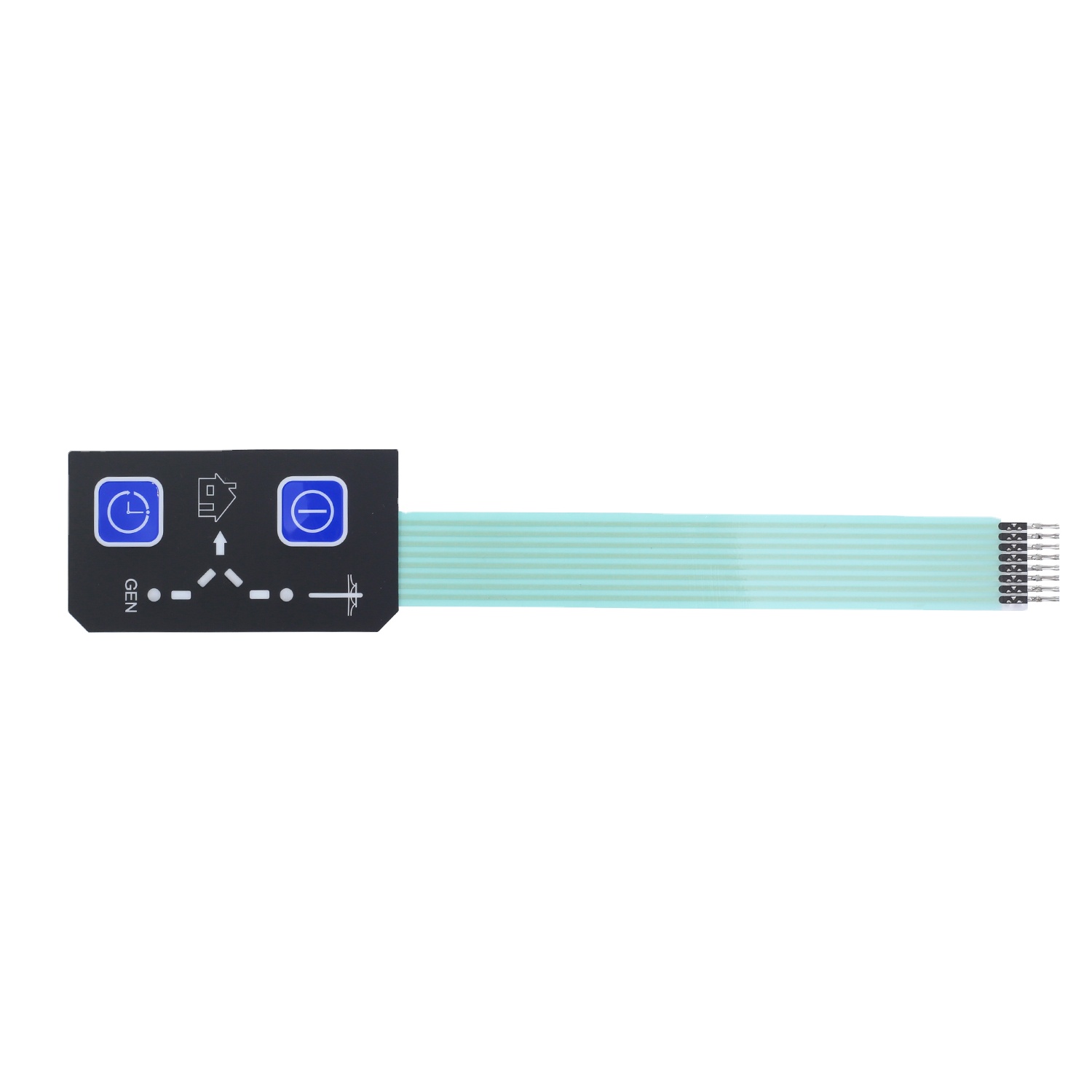

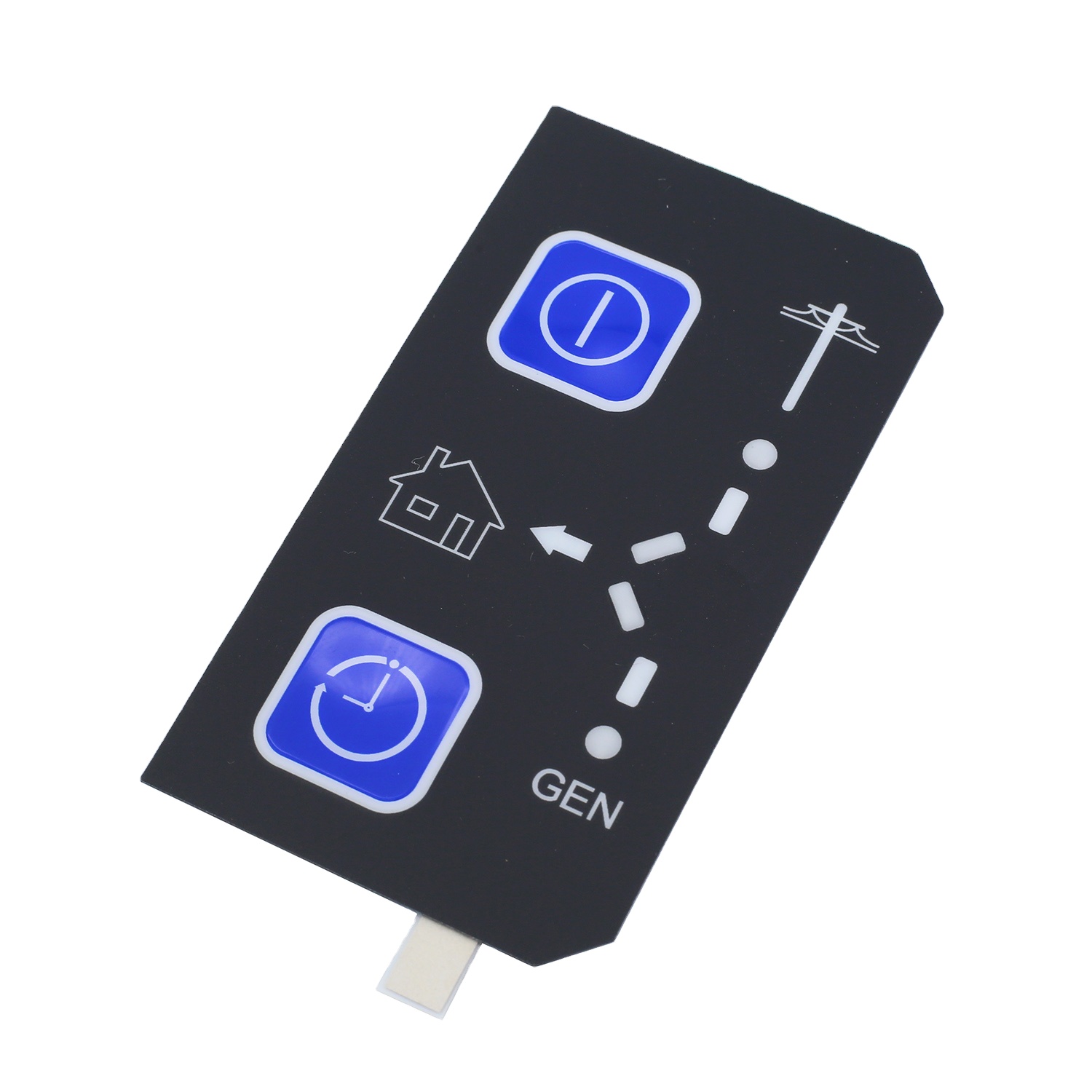

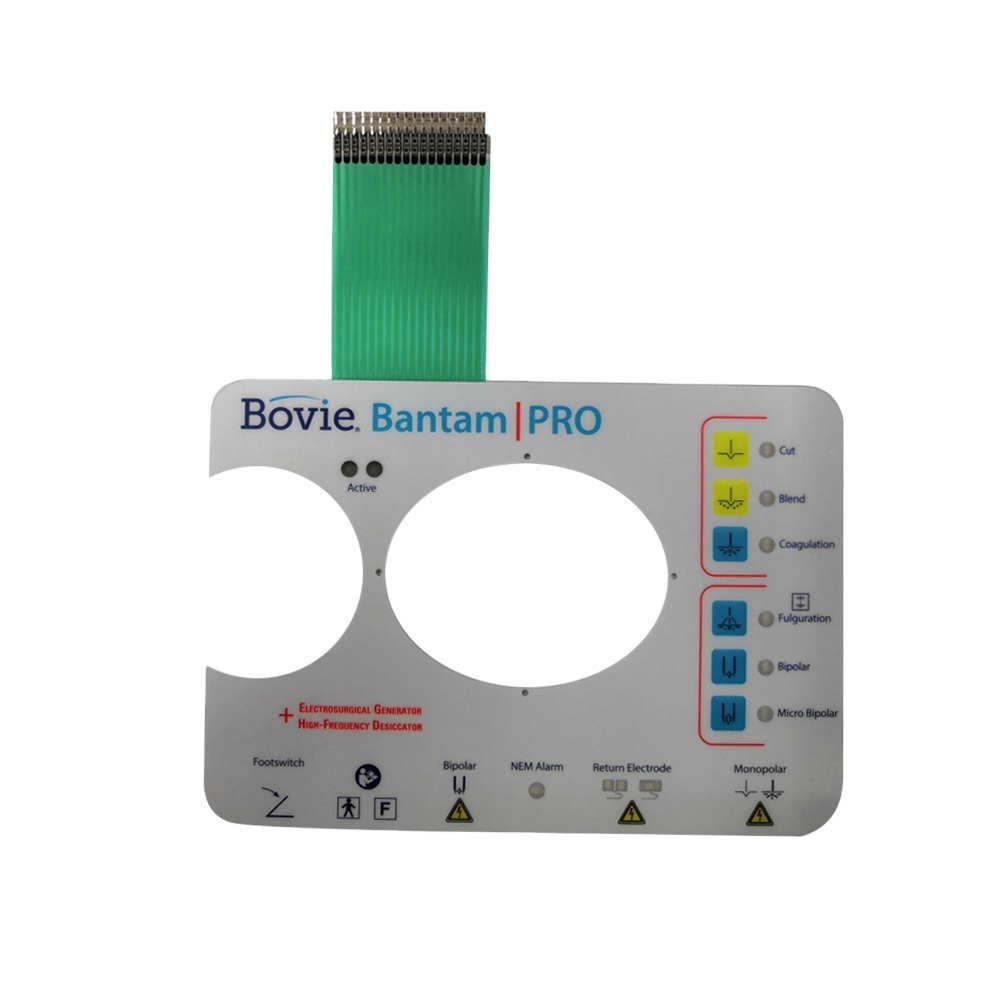

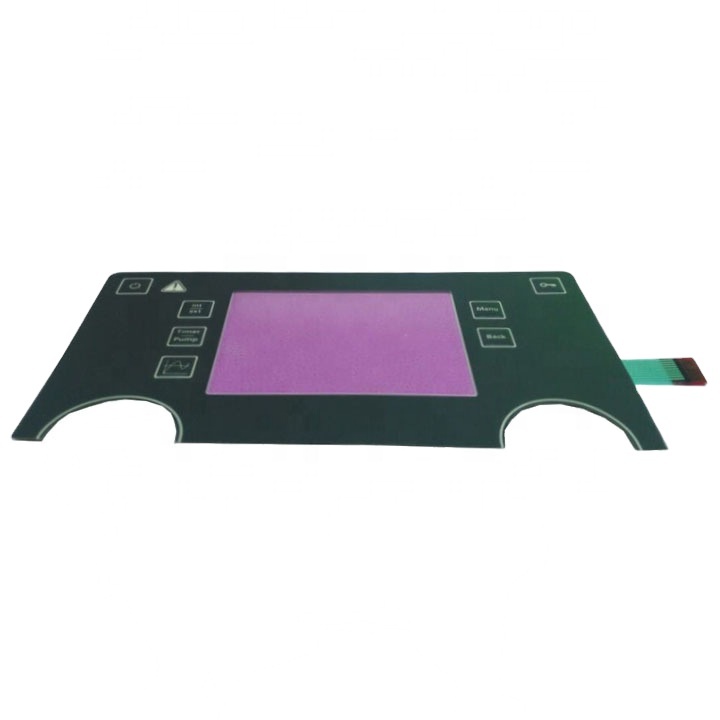

This waterproof membrane switch keypad is designed for superior performance in challenging environments. The IP-rated waterproof design ensures reliable functionality even in wet or humid conditions, making it ideal for outdoor and industrial applications. The integrated LED backlight enhances visibility, enabling accurate operation in low-light or nighttime settings. Featuring a durable and wear-resistant construction, this keypad provides long-lasting reliability. Customizable layouts and graphics allow it to fit seamlessly into diverse systems. Perfect for marine equipment, outdoor kiosks, and industrial control panels, it combines durability, functionality, and style.
