Modern electronic devices demand compact, reliable, and user-friendly input systems. PET membrane switch keypads have emerged as a leading solution. Their slim form, durability, and customization options make them ideal for consumer electronics, medical devices, industrial controls, and automotive panels. By integrating PET membrane keypads directly with printed circuit boards (PCBs), designers achieve thinner profiles, improved stability, and more efficient manufacturing.
PET membrane keypads combine a flexible overlay, conductive traces, and tactile or non-tactile feedback mechanisms. This structure allows for a highly responsive interface while minimizing physical space. When properly integrated with a PCB, the system offers precise signal transmission, long operational life, and consistent user experience.
The Evolution of Membrane Keypads
Membrane keypads have existed for decades, but PET materials have transformed their capabilities. Unlike traditional rubber or metal switch overlays, PET provides superior dimensional stability, chemical resistance, and electrical insulation. PET sheets maintain a consistent shape under pressure, heat, and humidity, reducing misalignment or contact failures.
Integration with PCBs advances functionality. Early membrane keyboards relied on discrete wiring or mechanical connectors, limiting reliability and thickness. Modern PET membrane switch keypads use conductive adhesives, hot-bar bonding, or lamination techniques to create seamless, slim interfaces. The result is a lightweight, low-profile control system suitable for compact devices.

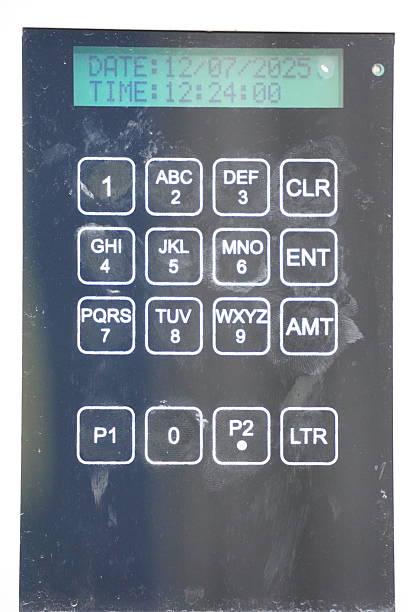

Design Principles for PET Membrane Switch Keypads
Effective keypad design begins with user requirements and system constraints. Key factors include layout, key spacing, tactile feedback, electrical performance, and environmental resistance. Designers must balance aesthetics with functionality.
Key size and spacing influence usability. Small keys save space but require precise actuation. Larger keys enhance ergonomics but increase panel dimensions. PET overlays allow precise cutouts and printed markings, supporting intuitive operation. Conductive traces embedded in the keypad must match PCB pads accurately. Misalignment can cause signal loss or intermittent response.
Graphic overlays are often printed using silk-screen, UV, or digital methods. Durable inks withstand repeated pressing, environmental exposure, and cleaning. Transparent windows, backlighting, and multi-color layers further enhance usability while maintaining the slim profile.
PCB Integration Techniques
Integration with PCB is a critical step in building reliable control systems. Multiple techniques are available depending on the application, volume, and cost constraints.
Direct Lamination: Adhesive layers bond the keypad directly to the PCB. This reduces connector complexity and ensures stable electrical contact.
Zebra Strips and Elastomer Connectors: Flexible connectors can bridge keypad contacts and PCB pads. They accommodate minor misalignment and provide serviceability.
Hot-Bar or Heat-Staking Bonding: This method creates strong, permanent connections between conductive traces and PCB pads, ensuring high reliability.
Surface-Mount Integration: In some designs, membrane traces directly interface with SMT pads. This approach reduces thickness and supports automated assembly processes.
Each method requires careful alignment, proper pressure, and controlled thermal profiles to avoid damaging PET material or PCB traces.
Materials and Electrical Considerations
PET overlays must match the electrical requirements of the PCB. Conductive inks or films, such as silver or carbon-based materials, carry signals from the key contacts to the PCB. Resistance levels, trace width, and spacing affect actuation force and signal integrity.
Dielectric strength and insulation layers prevent short circuits and crosstalk. Multi-layer designs can separate signal lines, power lines, and grounding, ensuring clean signal transmission. PCB surface finish, pad geometry, and solder mask quality also influence performance.
Temperature and humidity considerations impact material selection. PET maintains dimensional stability from -40°C to +80°C, supporting automotive and industrial environments. Specialized coatings further protect against moisture, chemicals, or UV exposure.

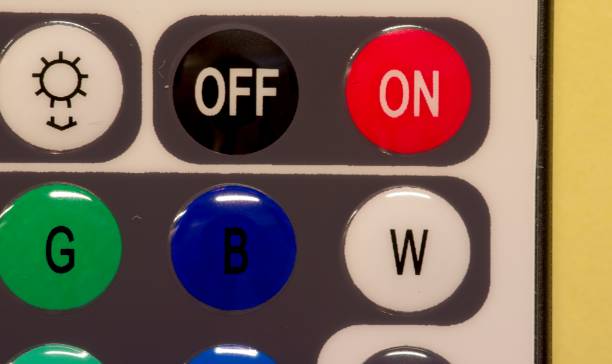

Tactile Feedback and User Experience
Tactile feedback enhances usability. PET membrane switch keypads can include metal domes, embossing, or tactile overlays to produce a responsive “click.” Non-tactile designs offer silent operation but require careful actuation force calibration.
Feedback must remain consistent over thousands of actuations. Mechanical reinforcement under key areas prevents fatigue and maintains tactile uniformity. Designers balance feedback with panel thinness, ensuring reliable performance without adding bulk.
Slim Profiles and Device Integration
One of the primary advantages of PET membrane switch keypads is their slim profile. Thin overlays and integrated PCB connections reduce overall device thickness. This feature is especially important in portable electronics, medical monitors, and automotive dashboards.
By combining keypad layers, graphic overlays, and PCB in a compact lamination, engineers reduce assembly complexity. Slim designs also support aesthetic integration, allowing seamless front panels without protruding buttons or connectors.
Reliability and Environmental Durability
Reliability is a major concern for control systems. PET membrane switch keypads resist dust, moisture, and chemical exposure. When laminated to a properly designed PCB, they provide long-term stability, even under high-frequency use.
Keypad layers prevent contaminants from reaching the PCB. Protective coatings, gaskets, and sealing techniques enhance environmental resistance. High-strength adhesives maintain alignment over thermal cycles. These design practices ensure consistent actuation and signal integrity over extended product life.
Manufacturing and Scalability
Production scalability is critical. PET membrane switch keypads support high-volume manufacturing. Automated lamination, printing, and bonding techniques reduce assembly time and error. Consistency is maintained across thousands of units.
Quality control measures include visual inspection, electrical continuity testing, and actuation force measurement. Defective units are identified early, preventing downstream failures. PCB integration further streamlines testing, as functional checks can occur before final assembly.
Advanced Features and Innovation
Modern PET membrane switch keypads incorporate advanced features to enhance functionality. Backlighting with LEDs enables low-light operation. Multi-layer designs allow simultaneous control of multiple circuits. Printed electronics can integrate sensors or touch-sensitive areas into the membrane overlay.
Integration with PCB allows smart features such as LED indicators, haptic feedback, and programmable keys. The combination of PET membrane switch keypads with PCB creates a versatile platform for next-generation control systems.
Cost Efficiency and Design Flexibility
PET membrane switch keypads offer cost-efficient manufacturing. Materials are lightweight and readily available. Layered designs reduce assembly labor. PCB integration further reduces connector complexity and assembly time.
Designers benefit from flexibility. Key size, layout, tactile type, and graphic overlays can be customized for each application. Color, texture, and backlighting create distinctive user interfaces while maintaining cost efficiency.
Summary and Strategic Insights
PET membrane switch keypads, integrated with PCBs, offer a slim, reliable, and versatile solution for modern control systems. Precision in design, tactile feedback, and environmental durability ensure consistent performance. Layered manufacturing supports high-volume production, cost efficiency, and application-specific customization.
Integration reduces overall thickness, simplifies assembly, and improves signal stability. Advanced materials, surface treatments, and bonding techniques ensure long-term reliability. Across consumer electronics, medical, industrial, and automotive applications, PET membrane switch keypads serve as a critical interface between users and devices.
By focusing on design, integration, and quality, engineers create durable, functional, and visually appealing control systems. PET membrane keypads and PCB integration remain central to innovation in compact electronic interfaces, combining flexibility, reliability, and manufacturing efficiency.
