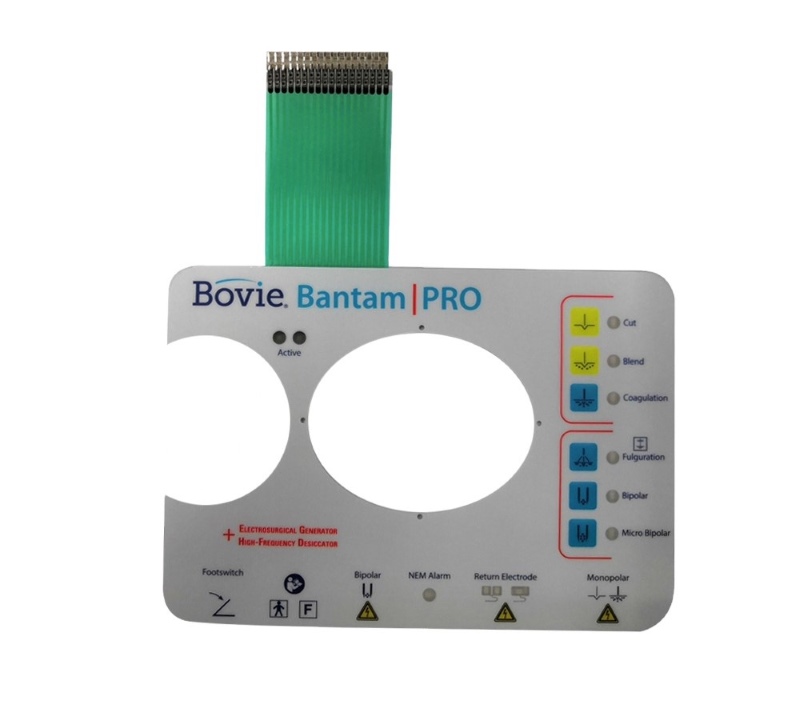

Membrane switch keyboards are an essential component of many medical equipment and instruments. They provide a safe and reliable way for users to interact with these devices, even in harsh environments.
What is a membrane switch keyboard?
A membrane switch keyboard is a type of keyboard that uses a flexible membrane to create electrical contact between the keys and the underlying circuitry. The membrane is typically made of a thin, durable material such as polyester or silicone. When a key is pressed, the membrane is deformed, making contact with the circuitry and completing the electrical circuit.
How do membrane switch keyboards work?
Membrane switch keyboards work by using a series of conductive layers. The first layer is a conductive trace that is printed on a substrate. The second layer is a dielectric layer that separates the conductive trace from the third layer, which is a conductive dome. When a key is pressed, the dome is deformed, making contact with the conductive trace and completing the electrical circuit.
Advantages of membrane switch keyboards
Membrane switch keyboards have a number of advantages over other types of keyboards, including:
- Waterproof and dustproof: Membrane switch keyboards are sealed to prevent water and dust from entering the keyboard, making them ideal for use in medical environments.
- Durable: Membrane switch keyboards are made from durable materials that can withstand repeated use and abuse.
- Customizable: Membrane switch keyboards can be customized to meet the specific needs of any application.
- Easy to clean: Membrane switch keyboards can be easily cleaned with soap and water.
Types of membrane switch keyboards
There are a number of different types of membrane switch keyboards available, including:
- Touch-sensitive keyboards: Touch-sensitive keyboards use a touch-sensitive membrane to detect key presses.
- Tactile keyboards: Tactile keyboards have a tactile feel when the keys are pressed, providing feedback to the user.
- Illuminated keyboards: Illuminated keyboards have backlit keys that make them easy to use in low-light conditions.
Applications of membrane switch keyboards
Membrane switch keyboards are used in a wide variety of medical equipment and instruments, including:
- Patient monitors: Membrane switch keyboards are used to control patient monitors and display vital signs.
- Infusion pumps: Membrane switch keyboards are used to program infusion pumps and set flow rates.
- Ventilators: Membrane switch keyboards are used to control ventilators and adjust breathing parameters.
- Defibrillators: Membrane switch keyboards are used to program defibrillators and select shock settings.
Designing and customizing membrane switch keyboards
Membrane switch keyboards can be designed and customized to meet the specific needs of any application. When designing a membrane switch keyboard, it is important to consider the following factors:
- The size and shape of the keyboard: The keyboard should be the right size and shape to fit the application.
- The number and layout of the keys: The keyboard should have the right number and layout of keys to meet the needs of the user.
- The type of membrane: The type of membrane should be chosen based on the environment in which the keyboard will be used.
- The graphics and legends: The graphics and legends on the keyboard should be clear and easy to read.
Conclusion
Membrane switch keyboards are an essential component of many medical equipment and instruments. They provide a safe and reliable way for users to interact with these devices, even in harsh environments. Membrane switch keyboards are available in a variety of types and can be customized to meet the specific needs of any application.
